Double Tilt Precision Permanent Magnet Sucker
Update time:2019-3-20 Hits:760

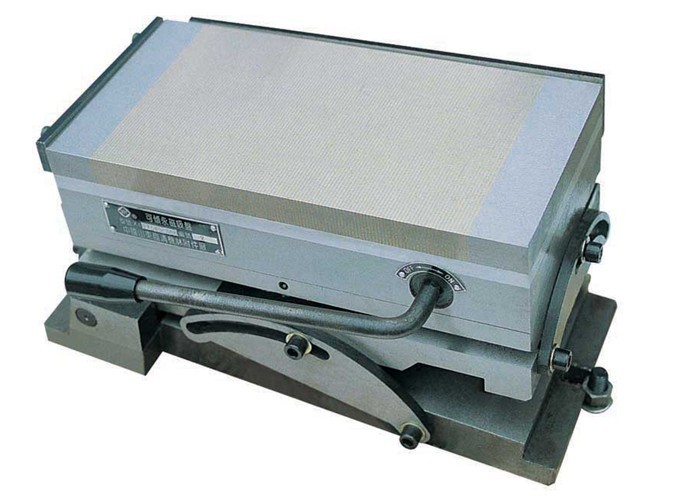

Product name: Double Tilt Precision Permanent Magnet Sucker

Product performance : Double-tilt precision permanent magnet chuck is suitable for precise grinding of front, rear or left slope of single-sided angle or compound angle on various surface grinders and EDM machines. The process has been specially treated to make the adjustment more accurate. Selection of high-quality materials, strong suction, small remanence, uniform distribution of magnetic force. The plane accuracy of the magnetic surface remains unchanged when switching on/off. The arrangement of magnetic poles is only 1.55 mm, which can hold smaller parts.

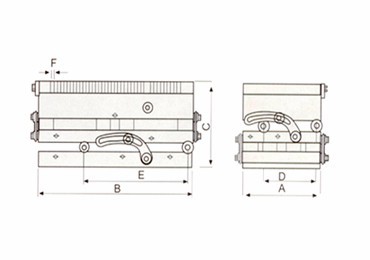

Product specification:
200
Model
size
Grinding angle
kg
A
B
C
D
E
F
200-1
Xm43-100*175
100
175
115
75
100
0.5+1.5
0-45
12
200-2
Xm43-125*250
125
250
115
75
150
0.5+1.5
0-45
20
200-3
Xm43-150*150
150
150
115
100
100
0.5+1.5
0-45
15
200-4
Xm43-150*300
150
300
115
100
150
0.5+1.5
0-45
32
Suggestions for use: There are two ways of installation (through hole/block). Please choose products according to the way of installation.
 More specifications can be customized.
