Ultra-thin permanent magnet chuck
Update time:2019-3-20 Hits:802

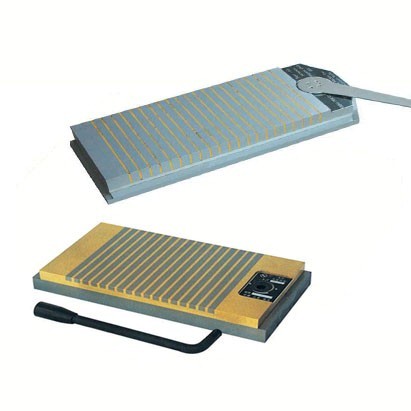

Ultra-thin permanent magnet chuck

Product name:Ultra-thin permanent magnet chuck

Product performance:Ultra-thin permanent magnet chuck is suitable for projector, EDM, high-speed micro-cutting, grinding machine, scraping, benchmarking, EDM, etc. The base structure is made of stainless steel material, which can be long-term rust-proof, corrosion-proof, sealing structure can be waterproof, the overall height is very low, and can maximize the processing height of equipment.

Product specification:

Model

British Standard

size mm



(mm)

(N/cm2)

Net WT/Kg

Overall size(cm)

 L

 W

 H

X41 150 × 300

6 × 12

300

150

28

8+2

≥ 80

11

38.5 × 25 × 9.5

X41 150 × 350

6 × 14

350

150

35

8+2

≥ 80

13

43.5 × 25 × 9.5

X41 150 × 400

6 × 16

400

150

40

8+2

≥ 80

16

49 × 25 × 11

X41 150 × 460

6 × 18

460

150

40

8+2

≥ 80

17.5

54 × 25 × 11

Suggestions for use: There are two ways of installation (through hole/block). Please choose products according to the way of installation.

More specifications can be customized.
