Longitudinal electromagnetic chuck
Update time:2019-10-24 Hits:984

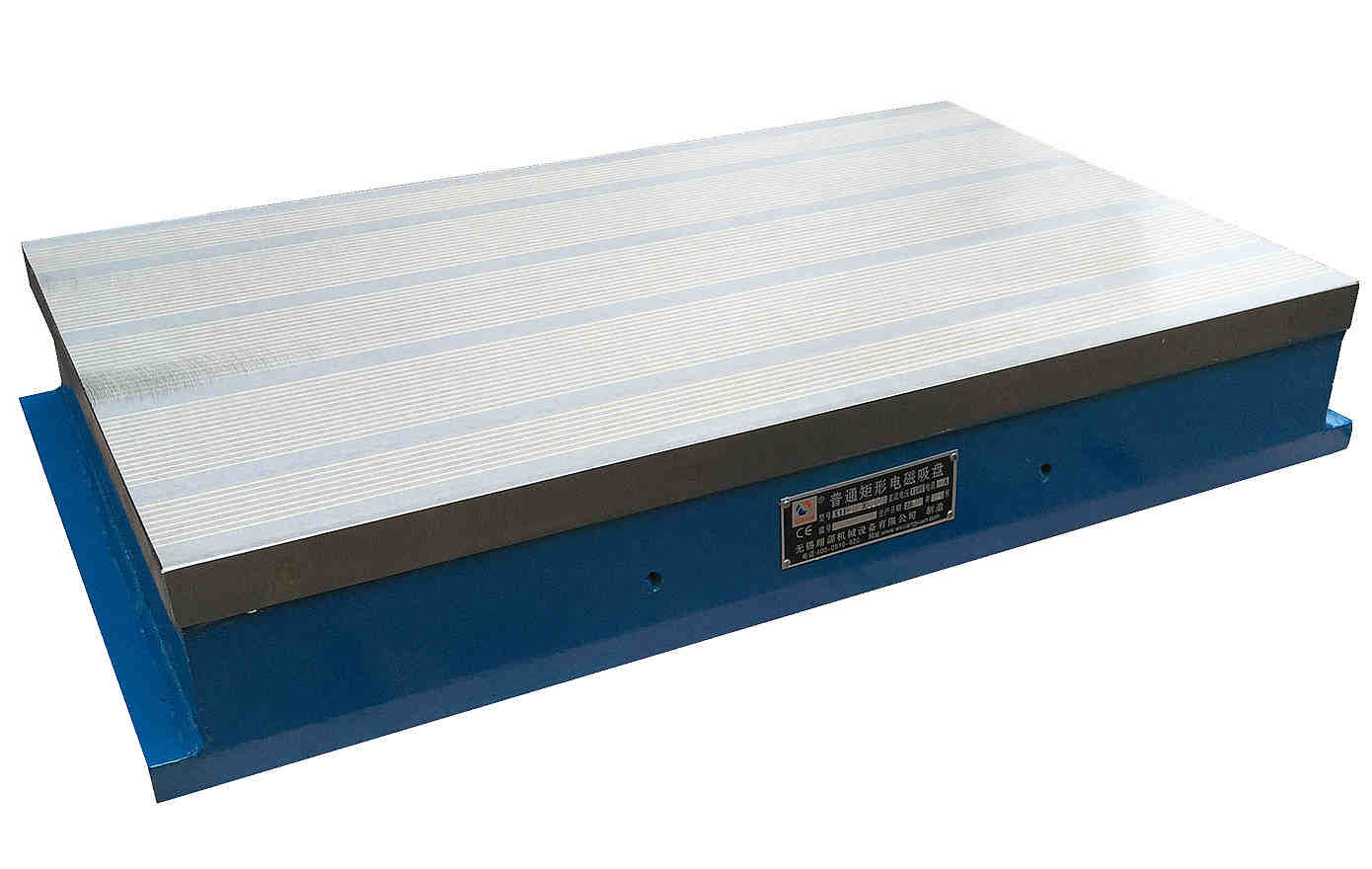

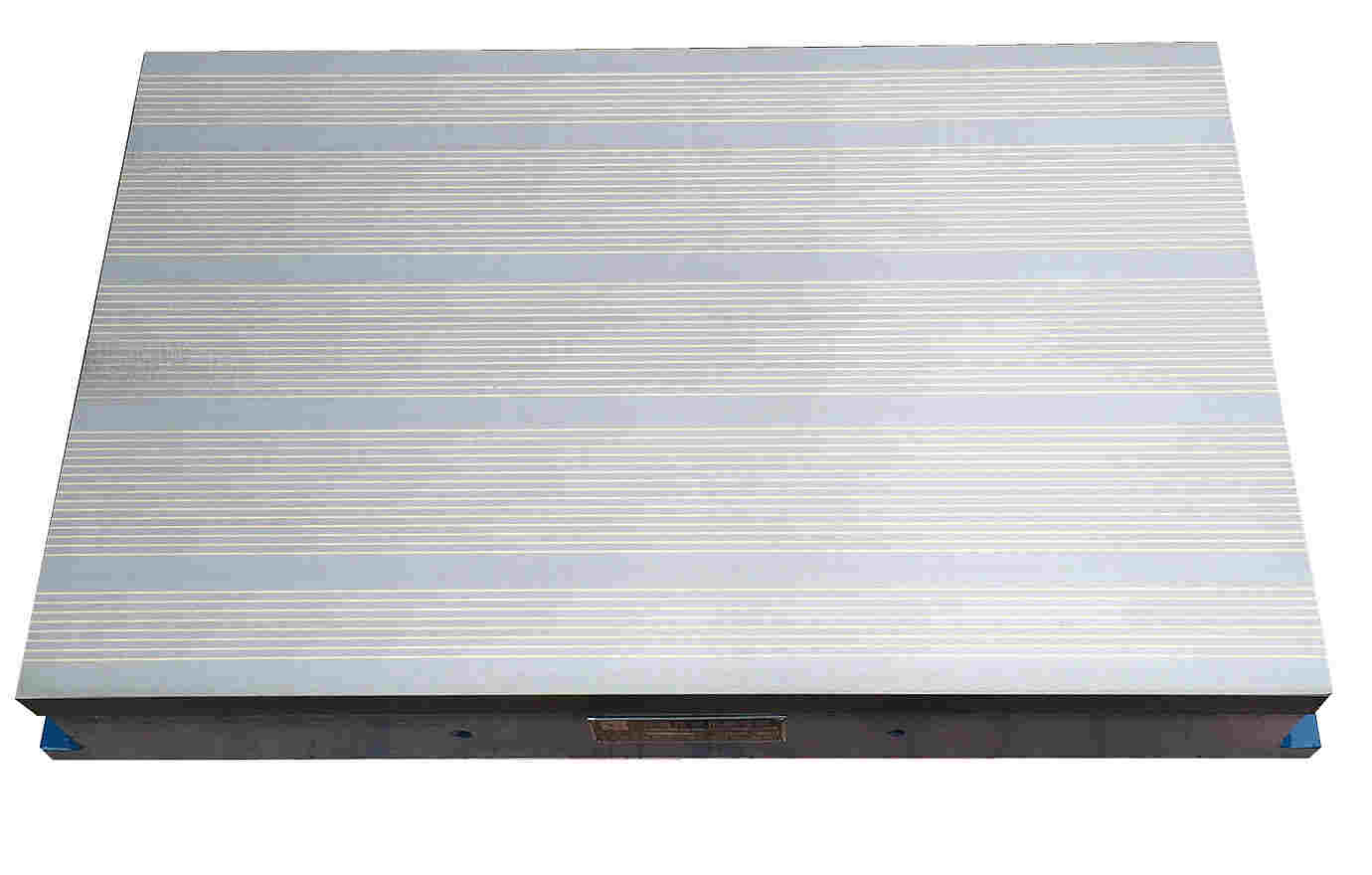

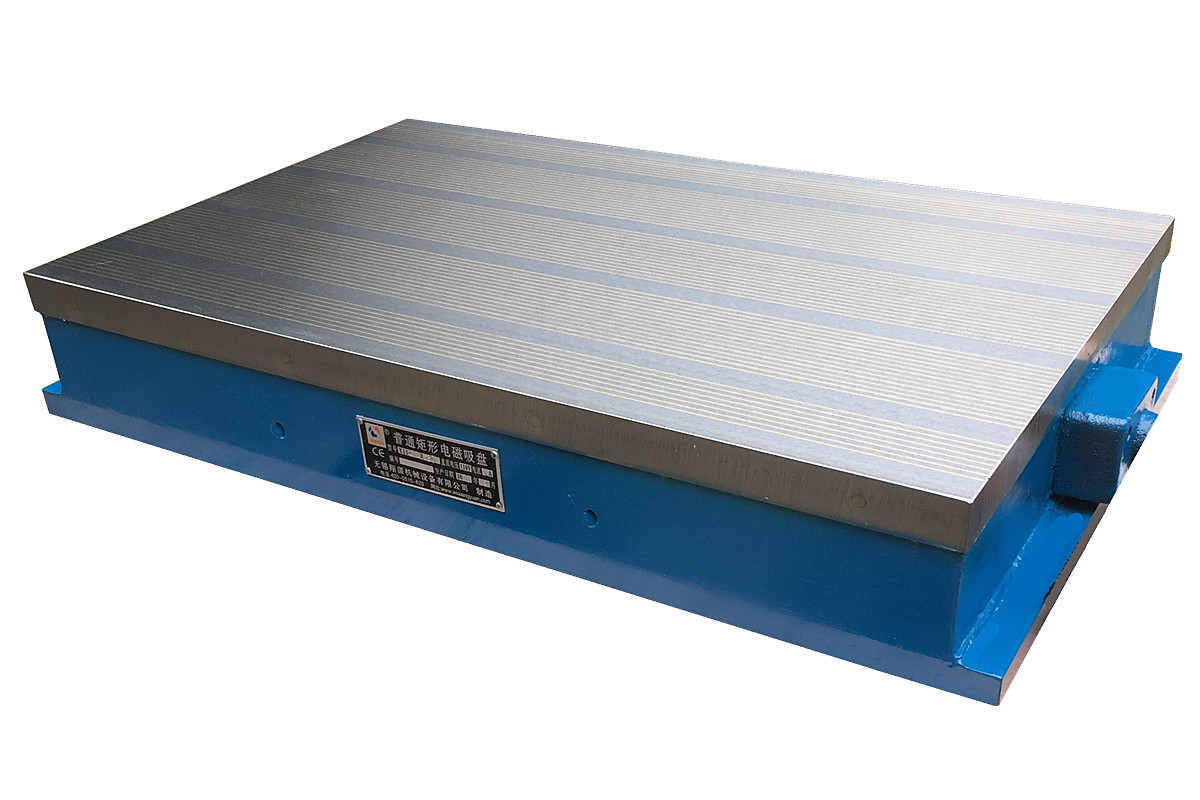

Product name:Longitudinal electromagnetic chuck
Product performance :Longitudinal electromagnetic sucker, the magnetic poles are arranged longitudinally. For long workpieces which need to be placed horizontally, grinding or milling with a large number of polishing and grinding wheels is particularly suitable. Longitudinal compact electromagnetic sucker can be used for thin and small workpieces. The magnetic force is 30% higher than that of common standard chuck. has good rigidity and little change in accuracy.
Longitudinal electromagnetic chuck for milling can be customized according to customer requirements.

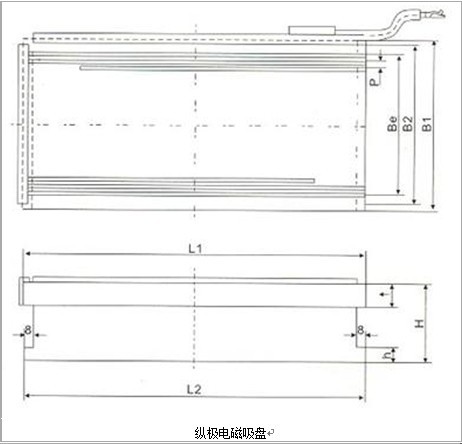

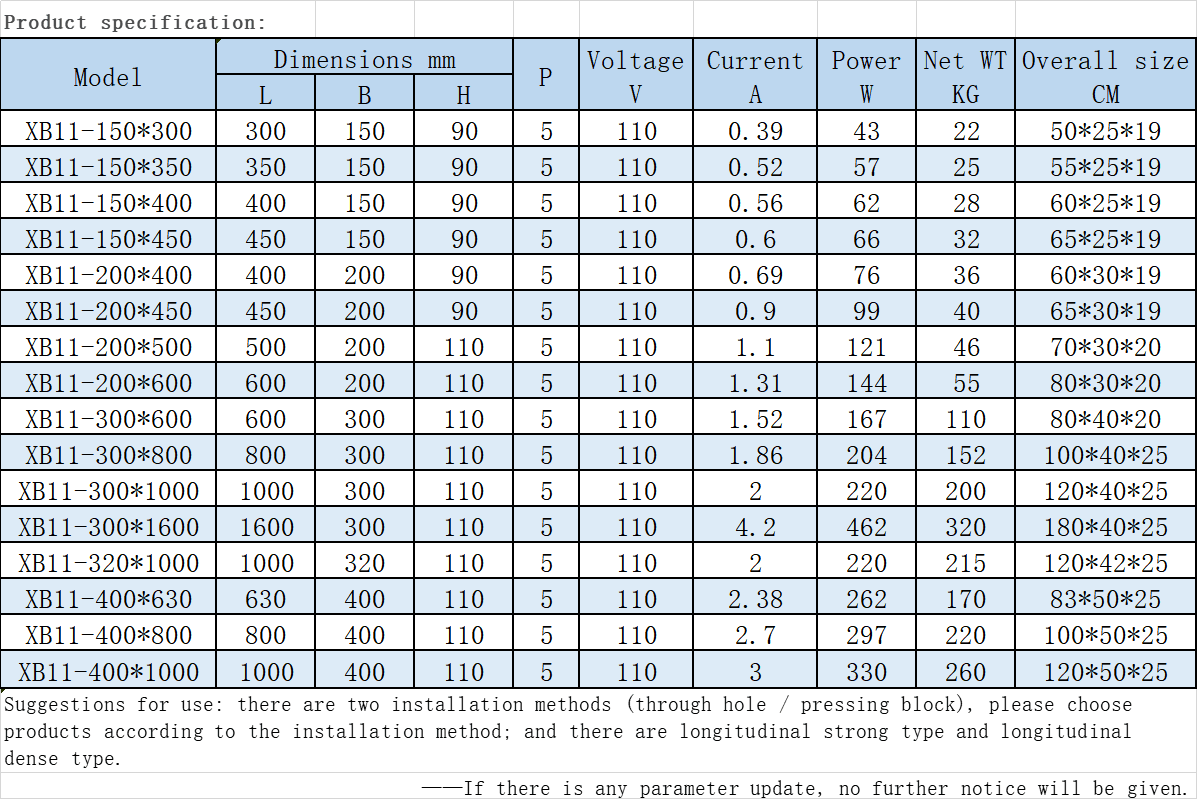

Parameter table of Longitudinal electromagnetic chuck
